Structural Analysis

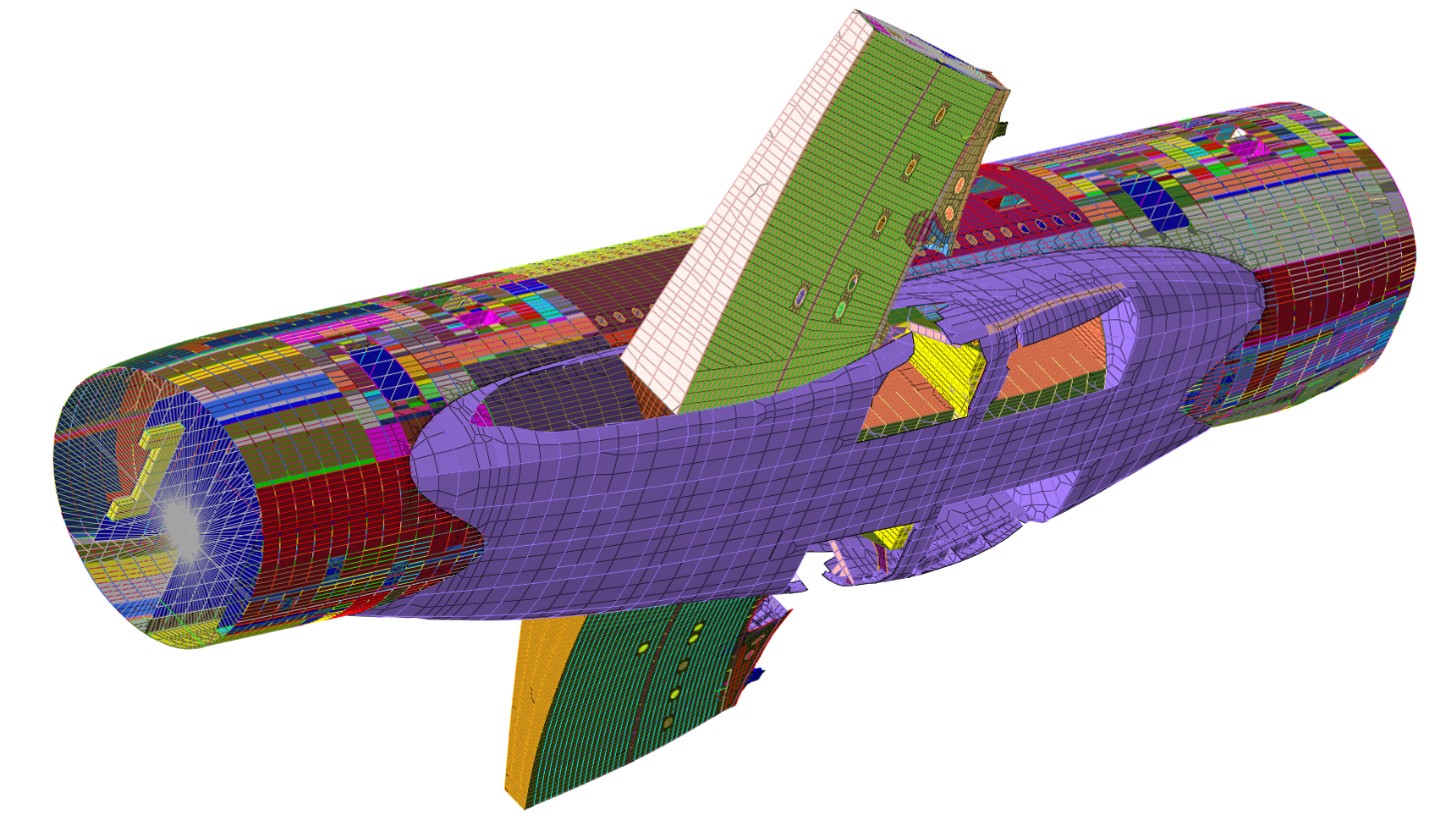

Structural Analysis - Finite Element Model

Comprehensive structural analysis and engineering solutions tailored for aircraft components and certification requirements.

Finite Element Modelling

  • Patran / Nastran, ABAQUS

Structural Analysis Capabilities:

  • Aircraft Structure: Skin, frame, stringer, rib, spar, fittings, etc.
  • Classical Hand Calculations: Bolt group, buckling, crippling, joint, beam bending, etc.
  • Aircraft Loads Creation: Emergency, flight, CS / FAR 23, CS / FAR 25.
  • Dynamic Analysis: Vibration, vibration fatigue, etc.
